Compressor Station Frames

Steel buildings that house compressors: portal frames with crane runway girders, purlins, girts, bracing and cladding, from the same PEB lines that build our industrial sheds.

Explore the 3D model Send us a drawing
Allmarc 3D model · to scale
Explore the model

How it is built.

Scroll: the camera moves to each part in turn and ends on the exploded view. Drag to turn it round yourself.

Loading model 0%

01 / 08

A compressor house

A portal-frame building with an overhead crane for maintenance. Span, height and crane capacity follow your design.

Scroll to see how it is built · drag to turn it round

02 / 08

Portal frames

Built-up columns and tapered rafters: plates matched on the beam line and welded by our Cloos robot, which takes the weld lines straight from the 3D model.

How is it possible at Allmarc?

Used here for: Portal frames

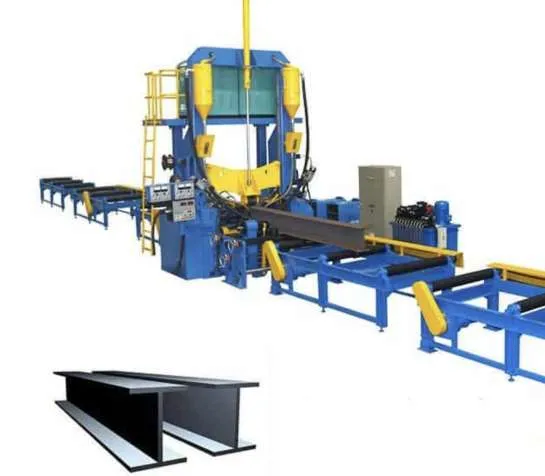

  • Plates matched and tack-welded
  • Automatic feed and stitch welding
  • H and I sections built from plate
All our machinery

Used here for: Portal frames

Tapered rafters and other non-uniform built-up sections, welded faster and with deeper penetration.

  • 40 m, state of the art
  • No programming: weld lines taken from the 3D model
  • Tandem torch: two wires at once
All our machinery

03 / 08

Crane runway

Runway girders and rails on column brackets, straightened and checked to crane tolerances.

How is it possible at Allmarc?

Used here for: Crane runway

  • Full-penetration welds on built-up sections
All our machinery
Hydraulic H-beam straightening in the Allmarc works

Used here for: Crane runway

  • Straightens built-up beams after welding
All our machinery

04 / 08

Purlins and girts

Cold-formed sections roll-formed and punched in house.

05 / 08

Bracing

Rod and angle bracing in the end bays.

06 / 08

Cladding

Roof and wall sheeting; shown on one side so the frame stays visible.

07 / 08

Around your machine

The crane and the compressor are supplied by others. The building is sized round them.

08 / 08

A kit of parts

Frames, girders, purlins, bracing and cladding: every member numbered, match-marked and packed in erection sequence.

Why Allmarc

Experience you can trust.

We fabricate to your drawings and prove the fit in our own bay before anything ships. Open any line for the detail.

Talk to an engineer
Structural steel at scale
  • 4 plants at Kanbha; about 6,000 T a month from November 2026.
  • Plate, sections and built-up members in house.
Trial-assembled
  • Fit-up proven in the works.
  • Match-marked for bolt-up on site.
Finished before dispatch
  • Blast, prime and paint in house; galvanised finishes on request.
  • Access steel fitted in the works.
Packed for the journey
  • Export packing we designed ourselves.
  • Shipped as numbered kits.
Related

More structural steel

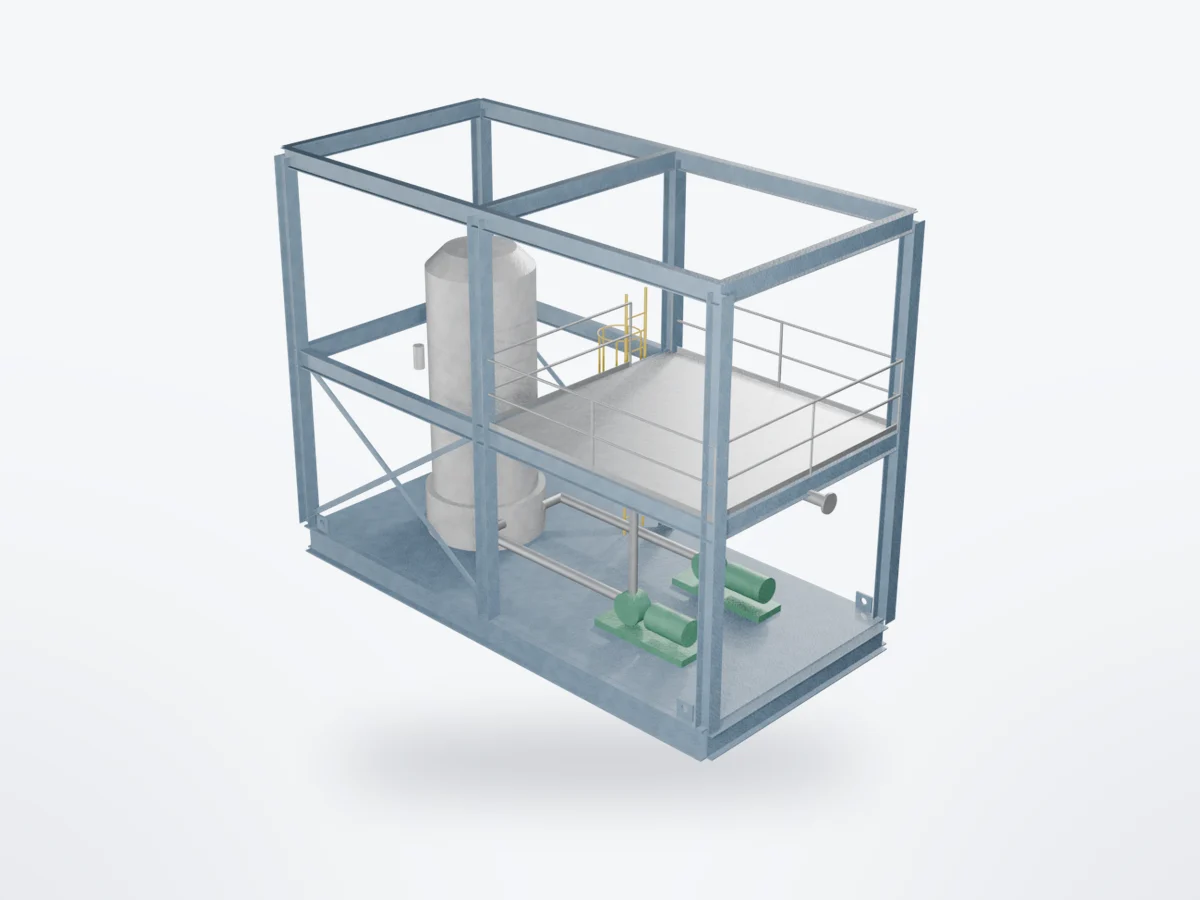

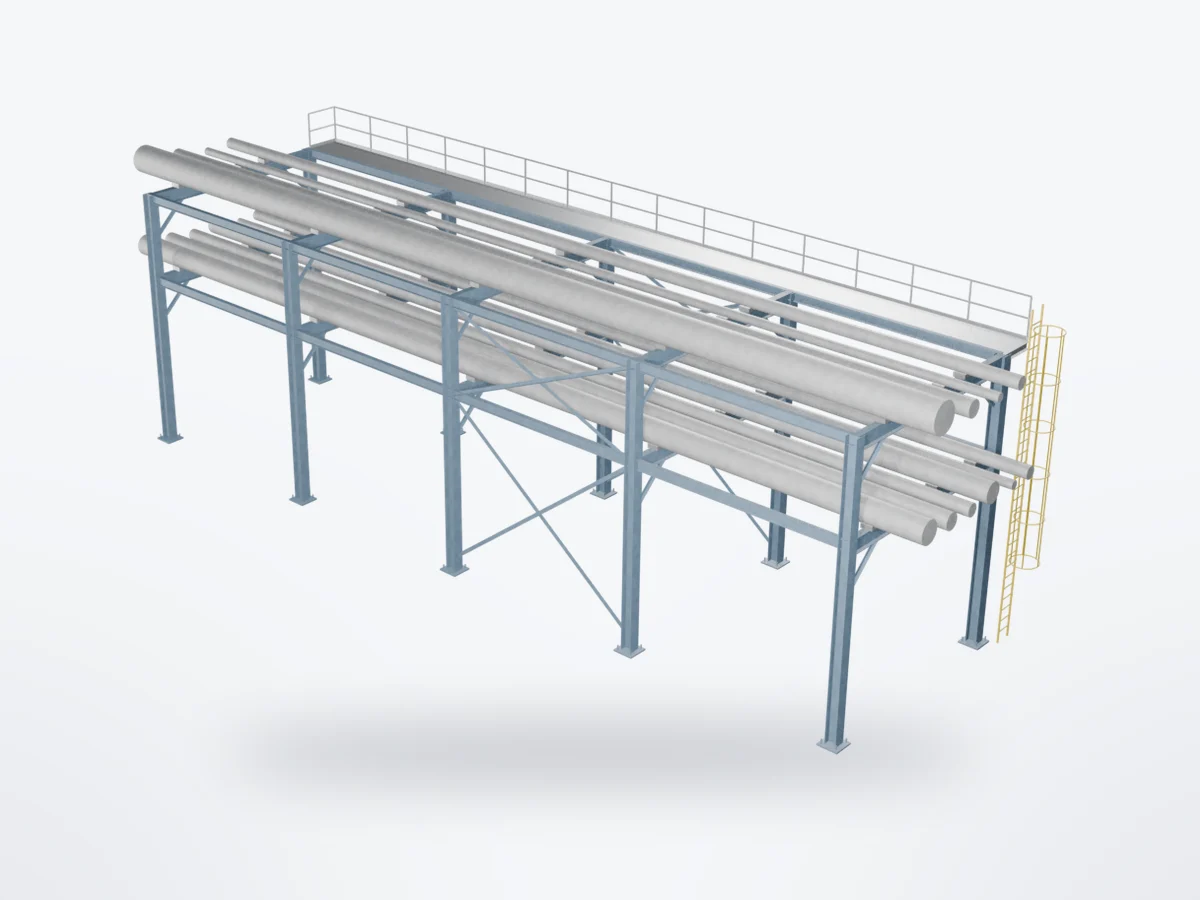

Oil & gas · Plant structures 3D model of Pipe Racks & Access Platforms The steel that carries every process line across a plant Pipe Racks & Access Platforms Oil & gas · Plant structures 3D model of Process Skids & Modules Skids are small and dense Process Skids & Modules Oil & gas · Plant structures 3D model of Wind Fences & Enclosures The fence round a ground flare that keeps outside air off the burners Wind Fences & Enclosures Oil & gas · Plant structures 3D model of Stacks, Silencers & Ducting Vent stacks, silencer bodies and large-bore ducting Stacks, Silencers & Ducting Industries 3D model of Pre-Engineered Buildings (PEB) Pre-engineered and multi-storey steel buildings, fabricated on automatic beam li Pre-Engineered Buildings (PEB) Oil & gas · Upstream & offshore 3D model of Chimney & Exhaust Support Structures Lattice towers that hold exhaust stacks and chimneys upright Chimney & Exhaust Support Structures Oil & gas · Plant structures 3D model of Marine Loading Platforms The steel superstructure on a jetty head Marine Loading Platforms
