The machines behind the work.
Designs that are complex, deadlines that are short, work that needs its own tooling: we invest in the machinery that makes those orders possible, and keep it under one roof.
From a 400 sq ft workshop to a fleet few manufacturers in India can match.
We were among the first in Gujarat to run a Trumpf TruPunch 1000, in 2018. In 2024 we were the only buyer of Deratech’s 20 kW, 12 m laser. Unit 2 adds a 40 m programme-free Cloos robotic welding unit, a Kotec beam drilling line and a robotic section cutting and bevelling cell.
That plant is what made us an RDSO-approved manufacturer. As our clients put it, you will not find a fleet like this in one place, especially in custom metalwork. Allmarc AM InfraCon, our JV with Aakshya Infra, opens in November 2026: a 1.5 lakh sq ft shed with an 80 T Goliath crane and 2,000 T a month. Beside our plants, a further 5.5 lakh sq ft of land is available to companies for their project or product-specific advanced fabrication.
How the steel is made.
Animated close-ups of the processes behind every product, modelled in 3D from our own lines.
Plate cut to the drawing, the kerf following the nest.
Hole patterns punched as the sheet steps under the head.
The punch comes down and the plate folds to angle.
Three rolls curl plate into a can.
A gantry robot runs the seam the full length of a beam.

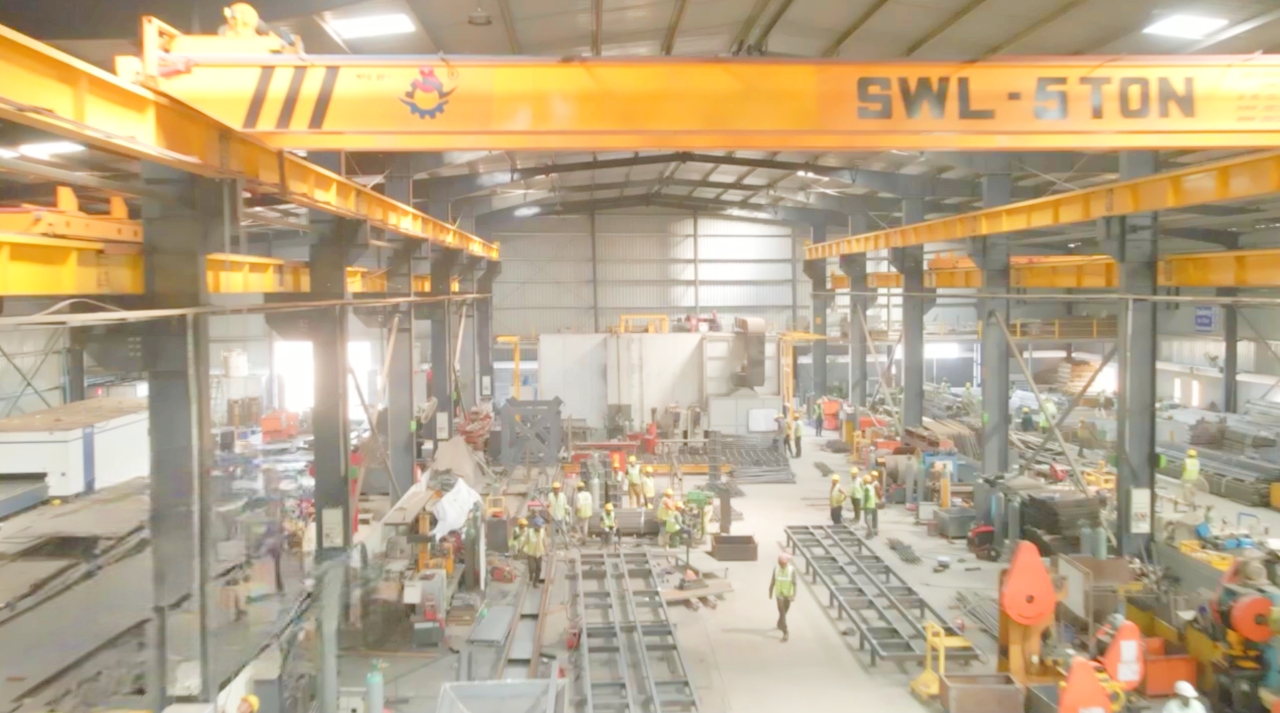

Kanbha, Ahmedabad.
2 units running on one site, and a third, three times their size, on the way.
Cutting
- 20 kW
- 12 x 3 m bed
- Pallet changer
In 2024 we were the only buyer of Deratech’s 20 kW, 12 m laser.
HSG 12 kW fibre laser
- 12 kW
- Cuts up to 40 mm
- 2,500 x 8,000 mm bed
Deratech 6 kW fibre laser
- 6 kW
- Cuts up to 20 mm
- 2,500 x 6,300 mm bed
HSG CNC tube laser
- 4 kW
- Tubes and sections up to 250 dia
- Automatic loading
CNC profile laser
- Tube, beam and structural profile cutting
Messer MultiTherm PRO CNC plasma
- Hypertherm XPR 460, first in India
- 5 oxy-fuel torches
- 4 x 35 m bed
Robotic H-beam cutting and bevelling cell
- Beams up to 1,000 x 500 mm
- 12 m long, 50 mm thick
- Hypertherm XPR 300
Trumpf TruPunch 1000 CNC punching
- CNC punching
- Among the first in Gujarat, 2018
Drilling & machining
Kotec newRun10DX CNC beam drilling line
- H-beams up to 1,000 x 500 mm
- Drills 3 faces in one pass
- Channels, angles and box sections
Heavy profiles that need precise holes, where plasma cannot do the job: the lower structure and panel borders of a ground flare, and every bolted PEB and multi-storey frame.
- CNC plate drilling
SKDX1030 CNC end-face milling
- Mills beam and column ends square for bolted splices
Forming & rolling
Deratech Ultima Hybrid 600 T press brake
- 600 T
- 6 m long
- Bends 12 mm plate
Deratech 8 m tandem press brake
- 8 m bending length
- Tandem technology
Three-roll pinch cum pyramid plate rolls
- Rolls plate up to 40 mm
CNC pipe bending
- CNC pipe and tube bending
Hydraulic H-beam straightening
- Straightens built-up beams after welding
Welding & beam lines
- 40 m, state of the art
- No programming: weld lines taken from the 3D model
- Tandem torch: two wires at once
Tapered rafters and other non-uniform built-up sections, welded faster and with deeper penetration.
- Plates matched and tack-welded
- Automatic feed and stitch welding
- H and I sections built from plate
Portable COBOT welding
- A portable robot fixed on the job itself
- Welding panels clamped on fixtures
- Full-penetration welds on built-up sections
ABB robotic MIG welding cells
- Three-phase robotic MIG
- Automatic special-purpose welding machines
Manual MIG welding
- Qualified welders, including 6G
Surface treatment
Blasting and painting booths
- Dust collection
- 15 m paint booth for long sections
- Sa 2.5 blasting
A Level 2 coating inspector on the floor full time; weather checked and a test before every batch of paint.
- Sealed, conveyor-fed
- Long beams blasted from all sides in minutes
Being added for PEB work (planned for October 2026).
Special lines
Grip-Strut walkway automation line
- Punching, embossing, edge bending, shearing
- Single-piece planks up to 8 m
Proven here, not on site.
Certified systems, and the habits that keep a site crew from finding a problem we could have found first.
Certifications
- ISO 9001:2015
- ISO 45001:2018
- EN 1090-1
- EN ISO 3834-3
- RDSO-approved fabrication line
100% trial assembly
When a client asks for it, every panel is assembled and inspected in our bay so that not one hole mismatches on site.
Coating inspection
A Level 2 coating inspector on the floor full time. Weather is checked and a test is run before every batch of paint.
Qualified welders
Robotic cells for repeat work and qualified welders, including 6G, for small-bore piping and the jobs that need a hand.
Packed for the journey
Export packing designed in house, so coated and insulated parts arrive the way they left.
Have a drawing? Let us build it.
Tell us the scope; an engineer will tell you which of these machines it runs on and what it would take.
