Allstage Staging System
The Allstage Staging System by Allmarc is a high-performance, adaptable solution for construction projects requiring quick and efficient staging. Built with precision and engineered for durability, it ensures fast assembly, minimal components, and exceptional load-bearing capacity, making it ideal for both small and large-scale scaffolding needs.
- Quick assembly with fewer components.
- High-grade steel construction for enhanced durability.
- Excellent load-bearing capacity for heavy-duty applications.
- Adaptable design for various project layouts.
- Lightweight for easy handling and transport.
- Ideal for both construction and maintenance work.

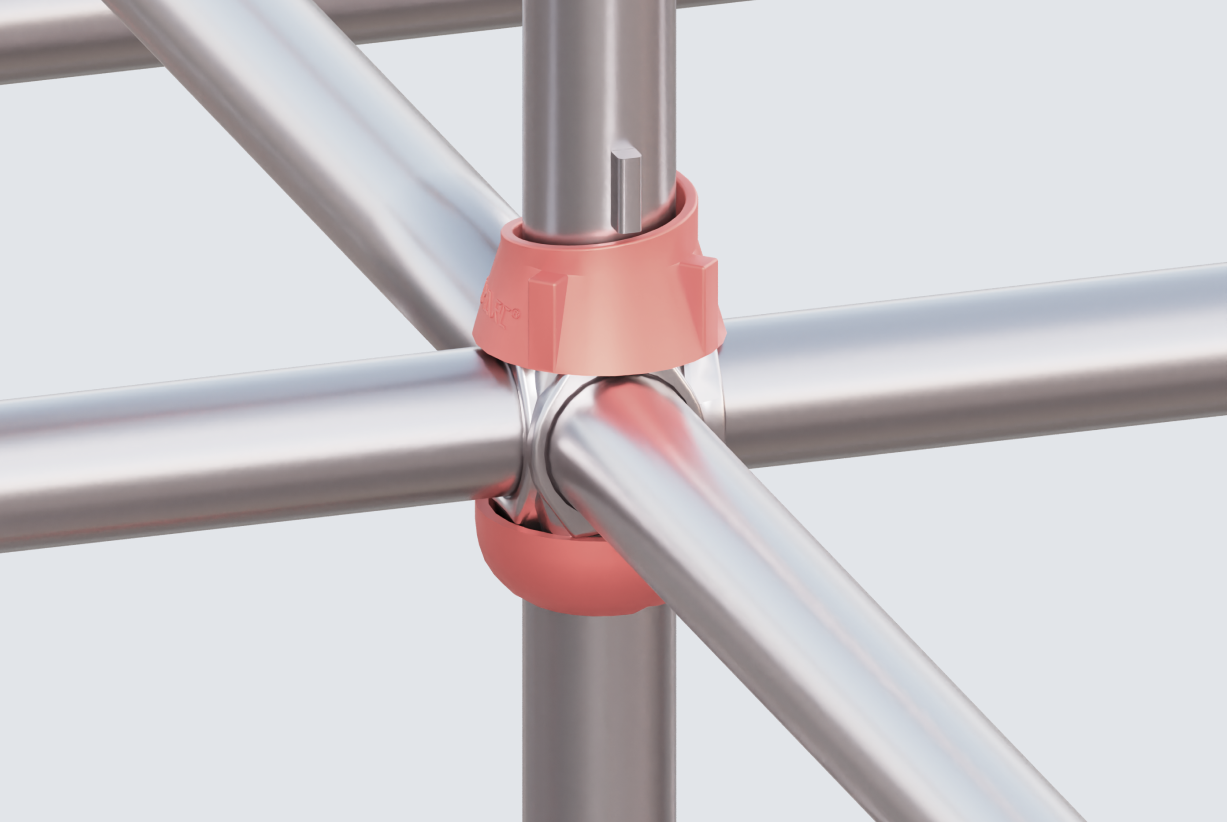

Verticals for Allshore Shoring System
The Verticals in the Allshore Shoring System are essential load-bearing members, designed for high strength and durability. They are crafted from top-grade YST 310 steel and feature precision-engineered components for maximum efficiency in heavy-duty applications.
Steel Type:
- YST 310 Steel (60% stronger than YST 210)
- Higher load-bearing capacity for demanding projects
Rosset Plates:
- Welded at 500 mm intervals
- Laser-cut for precision
- Robotic welding ensures consistency and dimensional accuracy
Sectional Properties:
- Diameter: 65 mm
- Thickness: 3.2 mm
- Sectional Area: 6.21 cm²
- Moment of Inertia: 29.74 cm⁴
- Section Modulus: 9.15 cm³
Specification of Verticals for Allshore Shoring System
Our vertical components are designed with precision to support diverse construction needs while ensuring safety and efficiency on-site.
| Part Code | Component | Pipe Dia. x Thick, mm | Length, mm | No. of Rings |
|---|---|---|---|---|
| ASV-1000 | Vertical | 65 x 3.2 | 1000 | 2 |
| ASV-1500 | Vertical | 65 x 3.2 | 1500 | 3 |
| ASV-2000 | Vertical | 65 x 3.2 | 2000 | 4 |
| ASV-2500 | Vertical | 65 x 3.2 | 2500 | 5 |
| ASV-3000 | Vertical | 65 x 3.2 | 3000 | 6 |
Ledgers for Allshore Shoring System
Ledgers are vital horizontal components in shoring systems, designed to support horizontal and lateral loads from planks and walkways. With crimped pipes, investment-cast end connectors, and secure attachment via Rosset plates, Ledgers feature a built-in locking mechanism for stable diagonal bracing.
Material Properties
- Steel Grade: YST 310 (60% stronger than YST 210)
Sectional Properties
- Sectional Area: 4.53 cm²
- Moment of Inertia: 11.59 cm⁴
- Section Modulus: 4.8 cm³
- Diameter: 48.3 mm
- Thickness: 3.2 mm
Design Features
- End Connectors: Investment casted for maximum strength

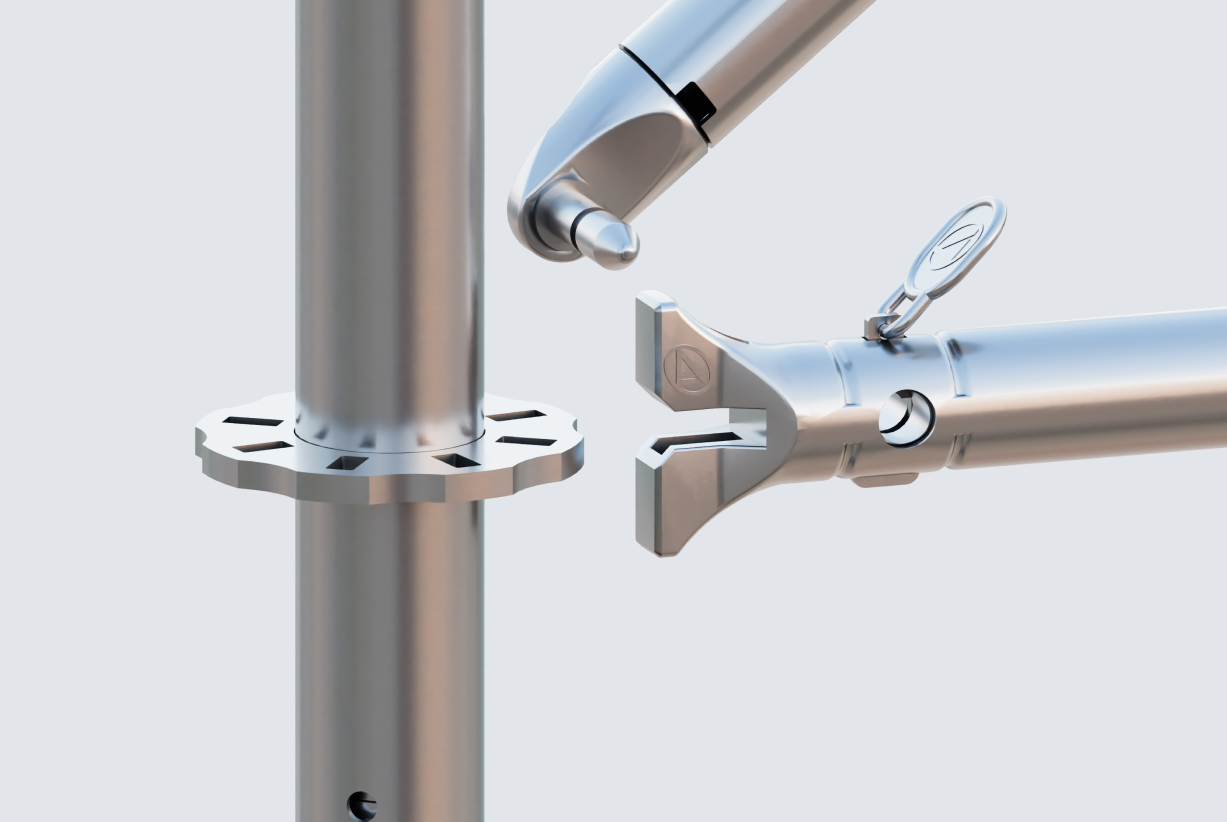

- Rosset Plate Connection: Ensures secure attachment to vertical members
- Locking Mechanism: Facilitates secure bracing connections
Specification of Ledgers for Allshore Shoring System
Our ledger components are meticulously engineered to support various construction applications while ensuring safety and efficiency on-site.
| Part Code | Component | Pipe Dia. x Thick, mm | Length, mm | Point Load, (W), kN | Two Point Loads, (P+P), kN | Total Load, kN (UDL, kN/m) |
|---|---|---|---|---|---|---|
| ASL-1200 | Ledger | 48.3 x 3.2 | 1200 | 1.95 | 2.50 | 3.42 (2.85) |
| ASL-1500 | Ledger | 48.3 x 3.2 | 1500 | 1.38 | 1.62 | 2.21 (1.47) |
| ASL-1800 | Ledger | 48.3 x 3.2 | 1800 | 0.97 | 1.13 | 1.53 (0.85) |
| ASL-2400 | Ledger | 48.3 x 3.2 | 2400 | 0.71 | 0.87 | 1.13 (0.47) |
| ASL-3000 | Ledger | 48.3 x 3.2 | 3000 | 0.57 | 0.69 | 0.90 (0.30) |
Braces for Allshore Shoring System
Bracings are diagonal members in the shoring system designed to take inclined loads, transmitting forces directly along their axes. They ensure maximum structural stability and safety in various construction applications.
Material Properties:
- Steel Grade: YST 310 (approximately 60% stronger than YST 210)
Locking Mechanism:
- Bracings are pressed into the slots in the ledgers for enhanced strength. A pin is then inserted to lock them securely in place.
Sectional Properties:
- Diameter: 48.3 mm
- Thickness: 3.2 mm
- Sectional Area: 4.53 cm²
- Moment of Inertia: 11.59 cm⁴
- Section Modulus: 4.8 cm³
Specification of Braces for Allshore Shoring System
Our bracing components are meticulously engineered to support various construction applications while ensuring safety and efficiency on-site.
| Part Code | Component | Pipe Dia. x Thick, mm | Length, mm |
|---|---|---|---|
| ASB-1200 | Bracing | 48.3 x 3.2 | 1000 |
| ASB-1500 | Bracing | 48.3 x 3.2 | 1500 |
| ASB-1800 | Bracing | 48.3 x 3.2 | 2000 |
| ASB-2400 | Bracing | 48.3 x 3.2 | 2500 |
