Allforte Modular Steel Formwork

Allforte Formwork stands out with its ingenious roll-formed panels, boasting a remarkable combination of lightweight design and high load capacity with E350 grade of steel. Its unique forged corner connector facilitates perpendicular attachment of multiple panels, enhancing the system's advanced modularity.


Exceptional Strength and Longevity for Tough Environments

Allforte Formwork offers exceptional strength and durability, making it ideal for high-pressure concrete applications and harsh environments. Designed to minimize panel waste, it ensures cost efficiency and reliable performance on any project.

  • Withstands 90 kN/m² Pressure: Reliable under high concrete pressure, ensuring robustness.
  • High Tensile Steel Frames: Constructed from 5mm thick E350-grade steel; meets IS code deflection limits.
  • Durable & Water-Resistant: High strength, anti-corrosion, and high resistance capabilities; utilizes high tensile steel.
  • Minimizes Panel Waste: Optimized design reduces wastage and costs by promoting high repetition and reuse.
3D Representation of Allforte Modular Steel Formwork System

Roll-Formed Panels with Forged Corner Connectors

Allforte Formwork features advanced roll-formed panels and unique forged connectors, combining lightweight design with high load capacity. The forged corner connectors ensure sturdy, damage-resistant attachments, enhancing efficiency and reducing costs.

  • Roll-Formed Sheets: 1.6 mm thickness and E350 grade; combines lightness with strength for high load capacity.
  • Forged Allforte Corner Connector: Solid and damage-resistant; minimizes panel wastage and lowers costs through repeated use.
  • Efficient Assembly: Advanced modularity with streamlined setup, ensuring superior performance and ease of assembly.
  • Galvanized & Powder-Coated: Protects against corrosion and wear, ensuring long-lasting durability.
3D Representation of Roll-formed Profiles and Forged Corner Connector

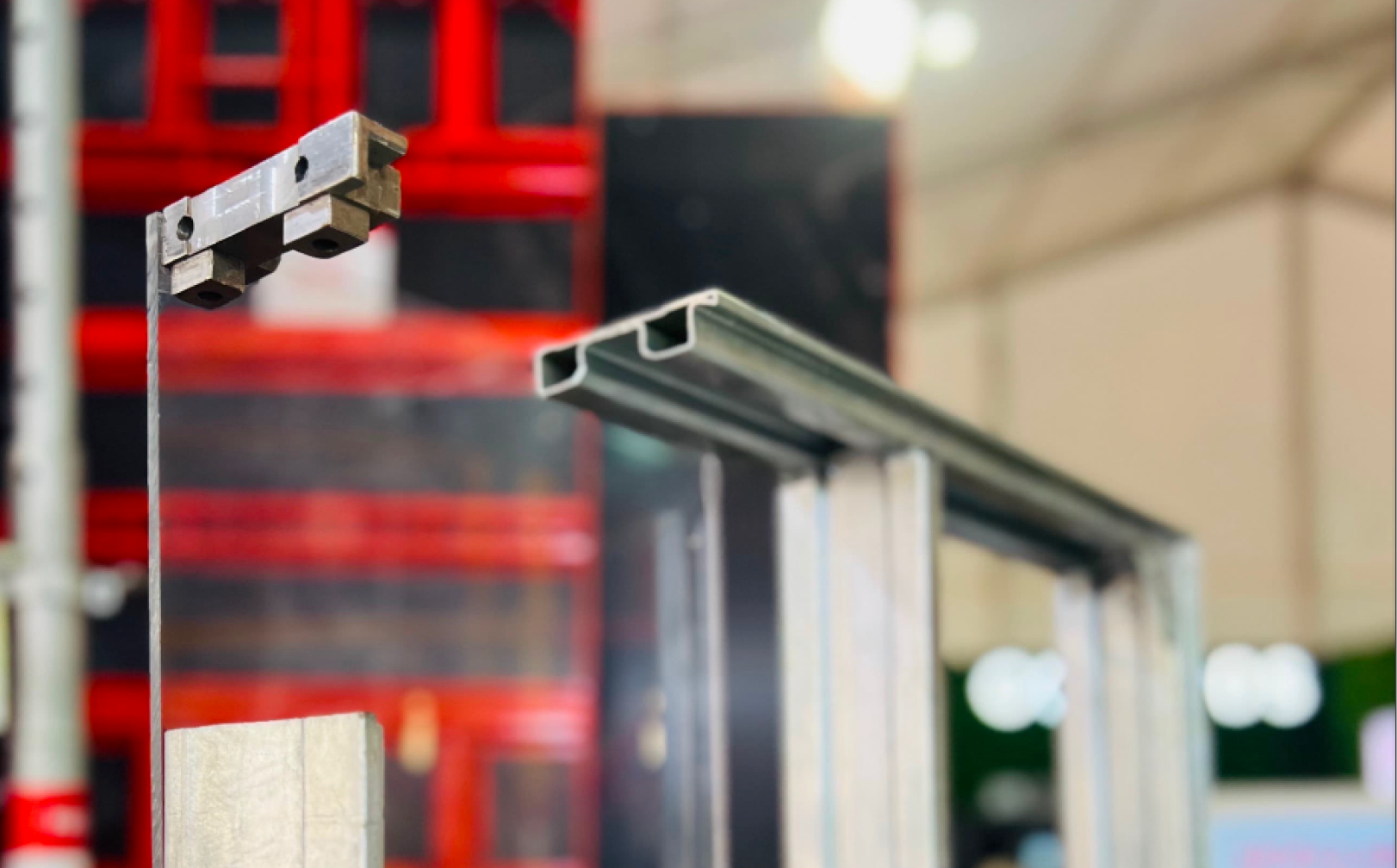

Actual Image of Allmarc's Allforte Forged Corner Connecter and Roll-formed Profile

Sustainable, Cost-Effective & Environment-friendly Solution

Allforte Formwork integrates eco-friendly practices and cost-saving features to offer a solution that supports sustainability while enhancing construction efficiency.

  • Environmentally Friendly: Built with high-tensile steel to endure harsh job site conditions, these panels and accessories are designed for reusability, reducing the need for new materials on each project and supporting green building practices.
  • Commitment to Lowering Carbon Footprint: By minimizing waste and focusing on reuse, we lower carbon emissions throughout both the manufacturing process and the product's lifespan, contributing to a reduced overall carbon footprint.
  • Cost-Effective: Durable and designed for long-term use, these panels reduce waste and maintenance costs, offering a cost-efficient solution over time.
3D Representation of Allforte System in Close-up

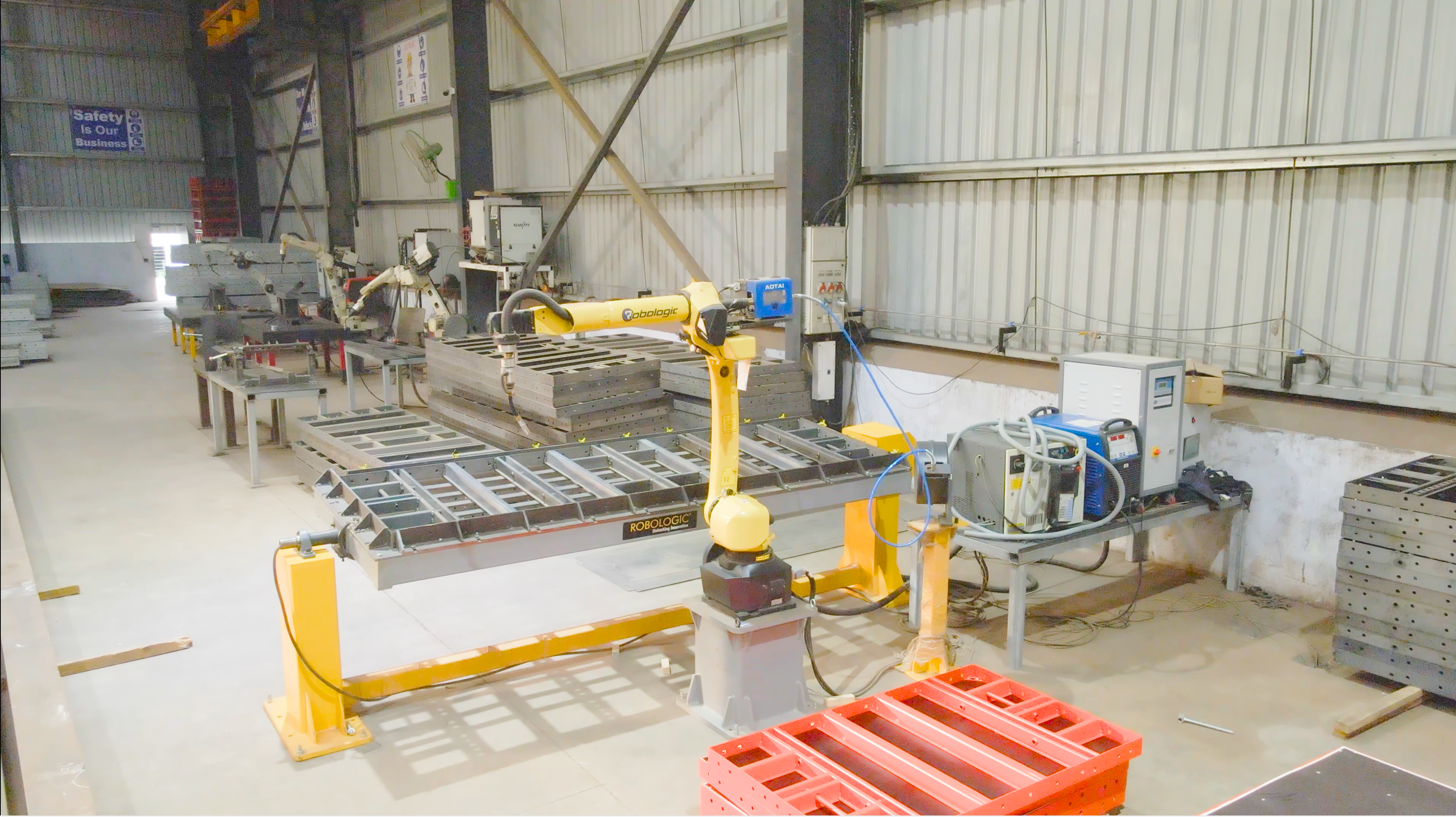

Allmarc's formwork panels are precisely manufactured using state-of-the-art machining tools, with in-house Robologic and ABB robotic welding arms ensuring accurate welding of the panel components.

Advantages of Allforte Modular Steel Formwork System

The Allforte Modular Steel Formwork System is designed to provide unmatched durability, versatility, and sustainability, setting new benchmarks for efficiency in the construction industry.

  • Unyielding Steel Frames for Durability

    • High-Strength Steel: 5mm thick E350 grade.
    • Durability: Withstands up to 90 kN/m² concrete pressure.
    • Deflection Compliance: Meets IS CODES standards.
    • Anti-corrosion: Oxidation resistance for longevity.
  • Birch Plywood with Phenolic Magic

    • Superior Finish: 12mm Birch Plywood with 120gsm phenolic coating.
    • Low Moisture Intake: Only 15% moisture absorption for extended durability.
    • High Reusability: Designed for multiple project cycles.
  • Galvanized and Powder-Coated Panels

    • Corrosion Resistance: Galvanized and powder-coated to protect against the elements.
    • Durability: Withstands wear, fading, and harsh weather conditions.
    • Cost-Effective: Long-lasting panels suitable for diverse construction projects.
  • Blend of Roll-formed Design

    • High-Precision Manufacturing: Roll-formed E350 sheets with 1.6mm thickness.
    • Superior Strength: Ideal for creating robust, modular formwork solutions.
    • Reliable Design: Ensures strength without compromising on flexibility or ease of use.
  • Forged Allforte Corner Connector

    • Streamlined Setup: Seamless perpendicular panel attachment for quick assembly.
    • Advanced Modularity: Ensures accurate and rigid connections between panels.
    • Fast Installation: Reduces formwork setup time, improving project efficiency.
  • Sustainable & Environmentally Friendly

    • Low Carbon Footprint: Designed for minimal environmental impact.
    • Less Waste: Reusable panels reduce job site waste and material needs for each project.
    • Energy Efficiency: Optimized to promote eco-friendly building practices.
3D Walkthrough of Accessories and Components used in Allforte Formwork System

Key Accessories for Allforte Modular Steel Formwork System

Discover essential accessories engineered for precision, durability, and reliability in formwork setups.

  • Allforte Clamp: Secures two panels with high precision for quick and rigid formwork assembly. Designed for fast setups and stable panel connections. Options avaiable for clamps as per project requirement.
  • Allforte Prop Support: Provides adjustable vertical support for slabs, beams, and walls. Built for heavy load-bearing with a sturdy, easy-to-use design that adapts to varied construction heights.
  • Allforte Corner Connector: Forged connector for enhanced strength and durability. Ensures precise 90° connections, optimizing modularity and reusability in complex formwork designs.

Each accessory is designed to improve efficiency, safety, and the versatility of your formwork system.

3D Representation of Accessories in Allforte System Assembly

Available Sizes of Allforte Steel Formwork Panels

Engineered for versatility and durability, our Allforte Steel Formwork Panels come in a range of widths and heights, designed to meet the demands of various construction projects. Each panel ensures optimal strength, precision, and ease of assembly, making it the ideal choice for forming robust concrete structures.

Sr. No. Model Product Name Length (mm) Width (mm) Capacity, kN/m²
1 AFOP-3090 Allforte Panel 3000x900 3000 900 90
2 AFOP-3075 Allforte Panel 3000x750 3000 750 90
3 AFOP-3060 Allforte Panel 3000x600 3000 600 90
4 AFOP-3045 Allforte Panel 3000x450 3000 450 90
5 AFOP-3030 Allforte Panel 3000x300 3000 300 90
6 AFOP-2790 Allforte Panel 2700x900 2700 900 90
7 AFOP-2775 Allforte Panel 2700x750 2700 750 90
8 AFOP-2760 Allforte Panel 2700x600 2700 600 90
9 AFOP-2745 Allforte Panel 2700x450 2700 450 90
10 AFOP-2730 Allforte Panel 2700x300 2700 300 90
11 AFOP-1890 Allforte Panel 1800x900 1800 900 90
12 AFOP-1875 Allforte Panel 1800x750 1800 750 90
13 AFOP-1860 Allforte Panel 1800x600 1800 600 90
14 AFOP-1845 Allforte Panel 1800x450 1800 450 90
15 AFOP-1830 Allforte Panel 1800x300 1800 300 90
16 AFOP-1590 Allforte Panel 1500x900 1500 900 90
17 AFOP-1575 Allforte Panel 1500x750 1500 750 90
18 AFOP-1560 Allforte Panel 1500x600 1500 600 90
19 AFOP-1545 Allforte Panel 1500x450 1500 450 90
20 AFOP-1530 Allforte Panel 1500x300 1500 300 90
21 AFOP-1290 Allforte Panel 1200x900 1200 900 90
22 AFOP-1275 Allforte Panel 1200x750 1200 750 90
23 AFOP-1260 Allforte Panel 1200x600 1200 600 90
24 AFOP-1245 Allforte Panel 1200x450 1200 450 90
25 AFOP-1230 Allforte Panel 1200x300 1200 300 90

Looking for Customised Solutions
for your Project?

Allmarc team will be happy to help you find the ideal solutions tailored to your business or project requirement.
